上海淞江减震器集团有限公司官方网站为您介绍：DN80丝扣螺纹橡胶管接头信息，淞江集团为客户提供各种橡胶管接头产品，以下是丝扣连接方式橡胶接头。
丝扣螺纹橡胶管接头产品安装使用说明：
1、丝扣(由任)橡胶软接头必须根据管线的工作压力、连接方式、介质和补偿量选择合适的型号，其数量根据减噪位移要求选择。
2、安装管道产生瞬间压力且大于工作压力时应选用高于工作压力一个档位的接头。(如：管道启动瞬间压力>1.0MPa时，应选用工作为1.6MPa的接头。瞬间压力>1.6MPa时，应选用2.5MPa的接头)。
3、当丝扣橡胶接头管道介质为酸碱、油、高温及其他特殊材料时应选用高于管道工作压力一个档位的接头。
4、正常适用介质是温度在0-60℃的普通水，特殊介质如：油、酸碱、高温及其他腐蚀性和质地坚硬的情况下，应选用相对应的特耐材料橡胶软连接，不可盲目串用或通用。
5、当管道位移量≥橡胶软连接的最大补偿量时，应增加接头的数量来平行位移量，严禁为了调整管道的超差，使接头处于极限的扰曲位移和偏差状态，更不能超限度(伸缩、位移、偏转等)。
6、高层给水或悬空给水使用螺纹橡胶接头，管道应固定在吊架、托架或锚架上，且不能让接头承受管道自身重量和轴向力，否则接头应配备防拉脱装置(其承受力必须大于管道轴向力)。

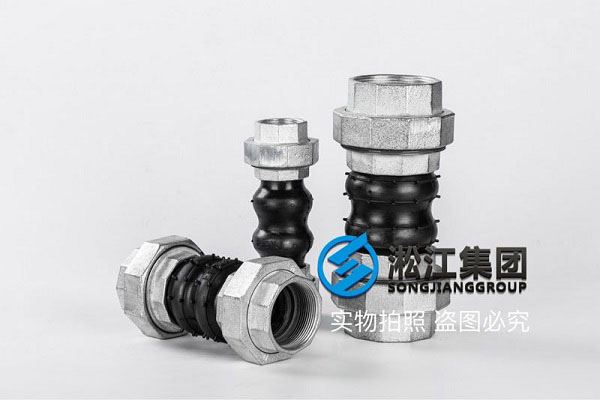

The official website of Shanghai Songjiang shock absorber Group Co., Ltd. will introduce to you: DN80 screw thread rubber pipe joint information. Songjiang group provides various rubber pipe joint products for customers. The following is the screw connection type rubber joint.
Installation and use instructions of screw thread rubber pipe joint:
1. The type of screw thread rubber flexible joint must be selected according to the working pressure, connection mode, medium and compensation amount of the pipeline, and the number shall be selected according to the requirements of noise reduction displacement.
2. When the instantaneous pressure of the installation pipeline is greater than the working pressure, the joint with a gear higher than the working pressure should be selected. (for example, when the instantaneous pressure of pipeline startup is more than 1.0MPa, the joint with working pressure of 1.6Mpa should be selected. When the instantaneous pressure is more than 1.6Mpa, 2.5MPa joint should be selected).
3. When the pipeline medium of screw rubber joint is acid-base, oil, high temperature and other special materials, the joint with a gear higher than the working pressure of the pipeline should be selected.
4. The normal applicable medium is ordinary water with a temperature of 0-60 ℃. In case of special media such as oil, acid and alkali, high temperature and other corrosive and hard texture, the corresponding special resistant material rubber soft connection shall be selected, and it is not allowed to be used blindly or in general.
5. When the pipeline displacement is greater than or equal to the maximum compensation of the rubber flexible connection, the number of joints shall be increased to parallel the displacement. It is strictly forbidden to make the joint in the limit deflection displacement and deviation state in order to adjust the out of tolerance of the pipeline, and shall not exceed the limit (expansion, displacement, deflection, etc.).
6. The threaded rubber joint is used for high-rise water supply or suspended water supply. The pipe shall be fixed on the hanger, bracket or anchor frame, and the joint shall not bear the weight and axial force of the pipe itself. Otherwise, the joint shall be equipped with anti pulling device (the bearing force must be greater than the axial force of the pipeline).
